Girder fork spindle set, Norton

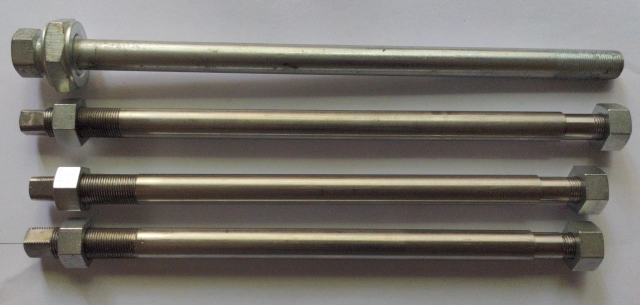

Norton girder fork spindles and nuts and washers. Three of these spindles have been newly made. The lower front spindle is a NOS military original that has been replated. Includes 6 x  knurled washers (BT-OF-3184). This spindle set will fit Norton girder forks manufactured between 1932 and 1946 with splayed fork legs as fitted to the following models: Big 4, 16H, 18, 19, 20, ES2, CS1, CJ, 50 and 55. Part numbers from the 1946 parts book and overall lengths are as shown below so please check they will fit your bike before purchasing.
Original parts numbers
9266; A2/185 - Front Fork Bottom Spindle, Front [has hexagon and thread for damper knob]. 10 inch overall length.
3808 - Front fork shock absorber adjusting nut, 11/16 in x 20tpi
3181; A2/184 - Front Fork Bottom Spindle, Rear . 9-7/8 inch overall length.
3179; A2/181 - Front Fork Top Spindle. 9-1/8 inch overall length. x 2
9267; A2/182 - front fork top or bottom spindle nut 1/2 inch x 3
3180; A2/183 - front fork top or bottom spindle nut 7/16 inch x 3
3184; A2/186 - Front fork spindle knurled adjusting washer x 6

  • Stock Code: BT-OF-girderspindleset
  • Shipping Weight: 1100 grams
  • 0 Units in Stock
